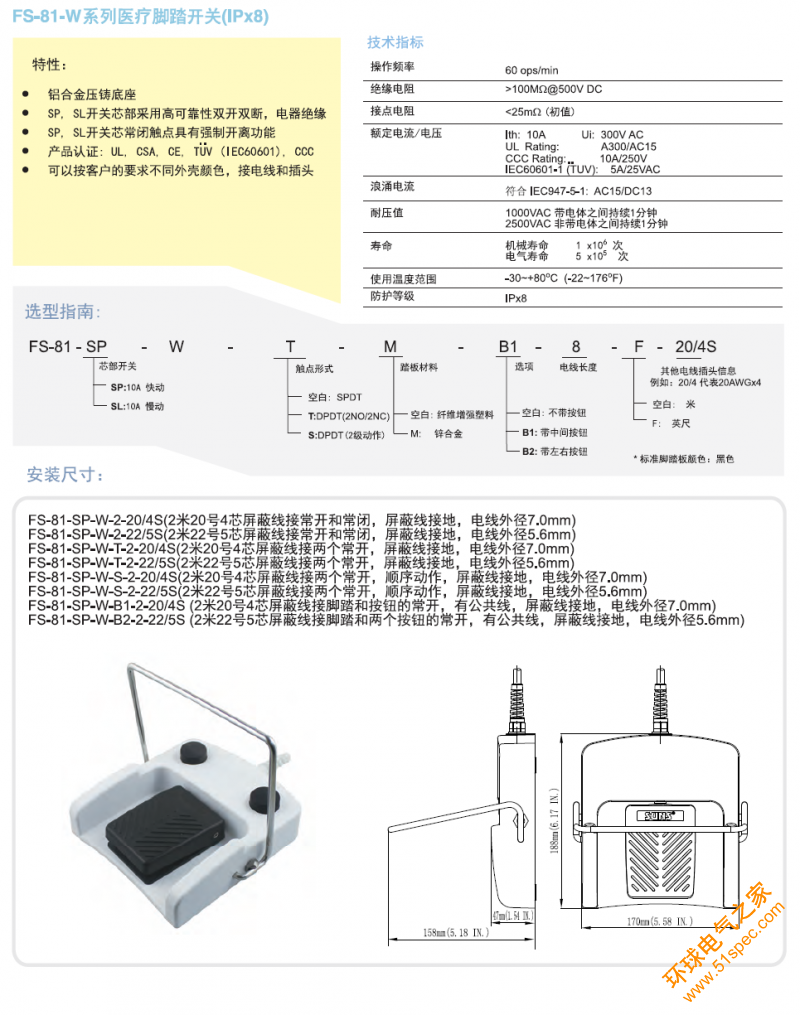

FS-81-W 醫療腳踏開關(IPx8)
特點： | 規格: 操作頻率 60 ops/min 絕緣電阻 >100mΩ@500V DC 接點電阻<25mΩ(initial) 額定電流/電壓 Ith: 10A Ui: 300V AC UL Rating: A300/AC15 CCC Rating: 10A/250V IEC60601 (TUV): 5A/25VAC 浪涌電流 符合 IEC947-5-1: AC15/DC13 耐壓值 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts 壽命 機械壽命 1 x106 (operations) 電氣壽命 5 x105 (operations) 使用溫度范圍 -30~+80oC (-22~176oF) 防護等級 IPX8(NEMA 4, 4X, 6, 6P) |
